Model # 0334-B / 0334-S (SKU 10-0334-B / 10-0334-S)

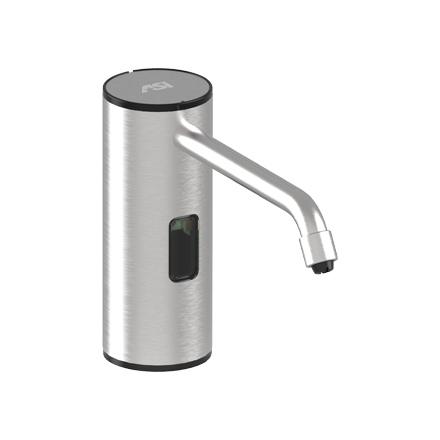

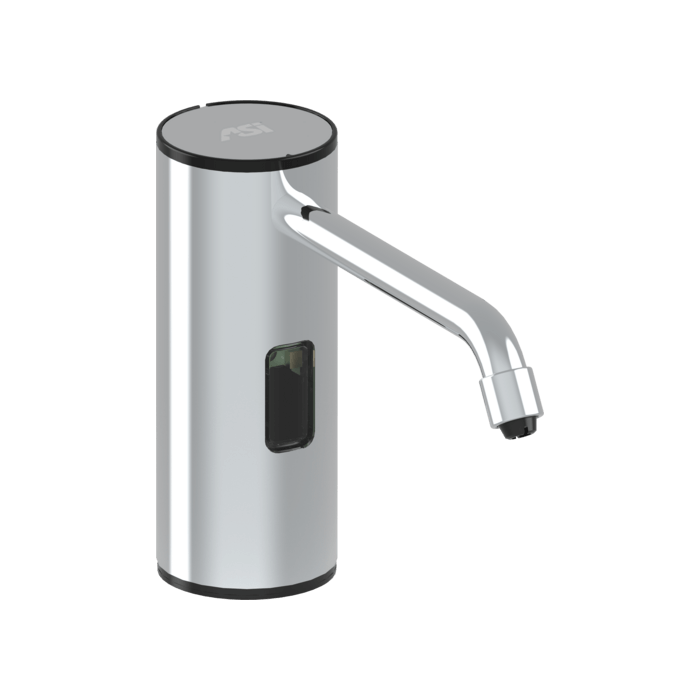

Product Dimensions: Spout body: 1-1⁄2 x 3-13⁄16 38 x 97 mm Spout Projection: 3-7⁄8" (98 mm) Supply Tank with Pump: 4-5⁄8 x 12-1⁄4 x 5-1⁄16 117 x 310 x 129 mm Product Description: TOUCHLESS OPERATION: A single shot of liquid soap or gel hand sanitizer is automatically dispensed by a battery powered mechanism when hands are placed in the sensor zone. Dispenser body is type 304 stainless steel with a bright or satin finish. An indicator LED shall provide status notification of battery condition, contents level and condition, and user sensor detection. Supply tank installed under vanity is clear with graduated markings to continuously provide contents level indication. Powered by 4 AA-size batteries (not included) or optional AC adapter (72-ACA, not included). Capacity: 50.7 oz. (1500 ml) of liquid soap or gel hand sanitizer Soap and Gel Hand Sanitizer Requirements: Proper usage of this dispenser requires, that only soap or gel hand sanitizer within the following range for viscosity and pH may be used. Liquid Soap Viscosity Range ( mPa·s or cP ): 5-3k Gel Hand Sanitizer Viscosity Range ( mPa·s or cP ): 3.5k-23k pH Range: 5.5 ~ 8.5 A complete Dispensing Chart and other relevant technical documents are available for all dispensers.
Product Specifications
| Shipping Weight | 4.0 lbs |
|---|
| Shipping Volume | 0.35 cu. ft. |
|---|
| Category | SOAP DISPENSERS & HAND SANITIZER DISPENSERS |
|---|
| Buy America Act | Compliant |
|---|
