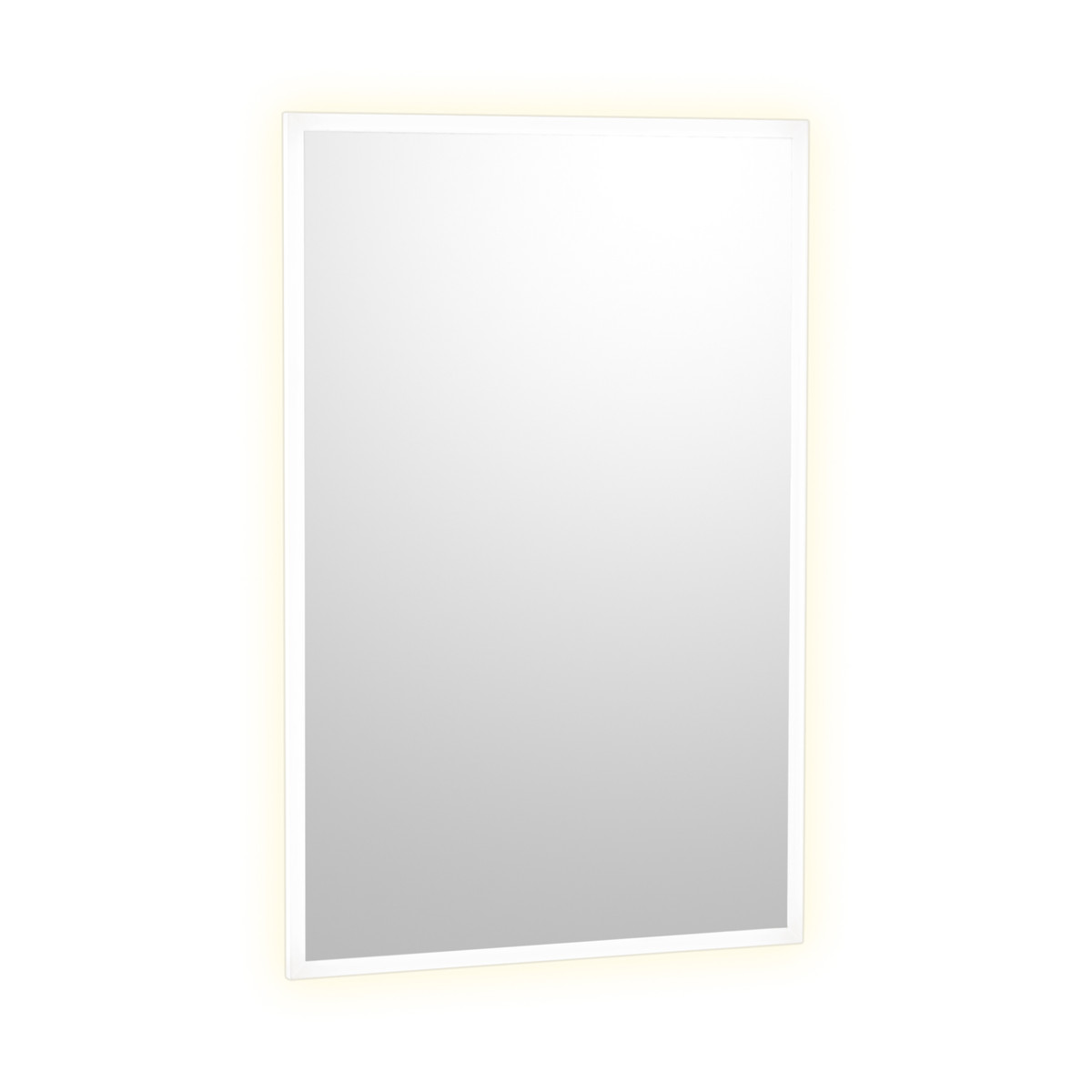

Bobrick B-167 Series LED Backlit Mirror (Outer Etched)

Product description

Commercial grade mirror construction combined with LED-lights reflecting quality, value and style. Mirror and mounting panel is IP44 rated, lead free silver backing exceeds ISO 9227:201, 120 hour corrosion testing. Light engine is IP66 rated with 50,000 hours estimated life. Optional 30″ cord with three-prong plug (Order 164-57). 6mm safety film backed glass mirror, with backside aluminum frame with key lock holes, for both wall mounted and recessed installation.

Available in the following sizes:

B-167 1844: 18-1/8″ W x 44-1/8″ H (460 x 1120mm), 25 Watts (W), 3000 Kelvin (K), 2830 Lumens (LM)

B-167 2436: 23-5/8″ W x 35-3/8″ H (600 x 900mm), 24 Watts (W), 3000 Kelvin (K), 2760 Lumens (LM)

B-167 2448: 23-5/8″ W x 47-2/8″ H (600 x 1200mm), 29 Watts (W), 3000 Kelvin (K), 3310 Lumens (LM)

B-167 2632: 25-19/32″ W x 31-1/2″ H (650 x 800mm), 23 Watts (W), 3000 Kelvin (K), 2650 Lumens (LM)

B-167 2739: 27-9/16″ W x 39-3/8″ H (700 x 1000mm), 26 Watts (W), 3000 Kelvin (K), 3030 Lumens (LM)

B-167 5442: 53-1/8″ W x 41-3/8″ H (1350 x 1050mm), 38 Watts (W), 3000 Kelvin (K), 4400 Lumens (LM)

B-167 5626: 55-1/8″ W x 25-19/32″ H (1400 x 650mm), 33 Watts (W), 3000 Kelvin (K), 3750 Lumens (LM)

B-167 6642: 64-15/16″ W x 41-3/8″ H (1650 x 1050mm), 46 Watts (W), 3000 Kelvin (K), 4965 Lumens (LM)

Specifications

Frame Finish	Frameless
Type	LED
Glass Type	Standard
Accessibility	ADA Compliant

Healthcare Categories	Mirrors
Accessibility	ADA Compliant
