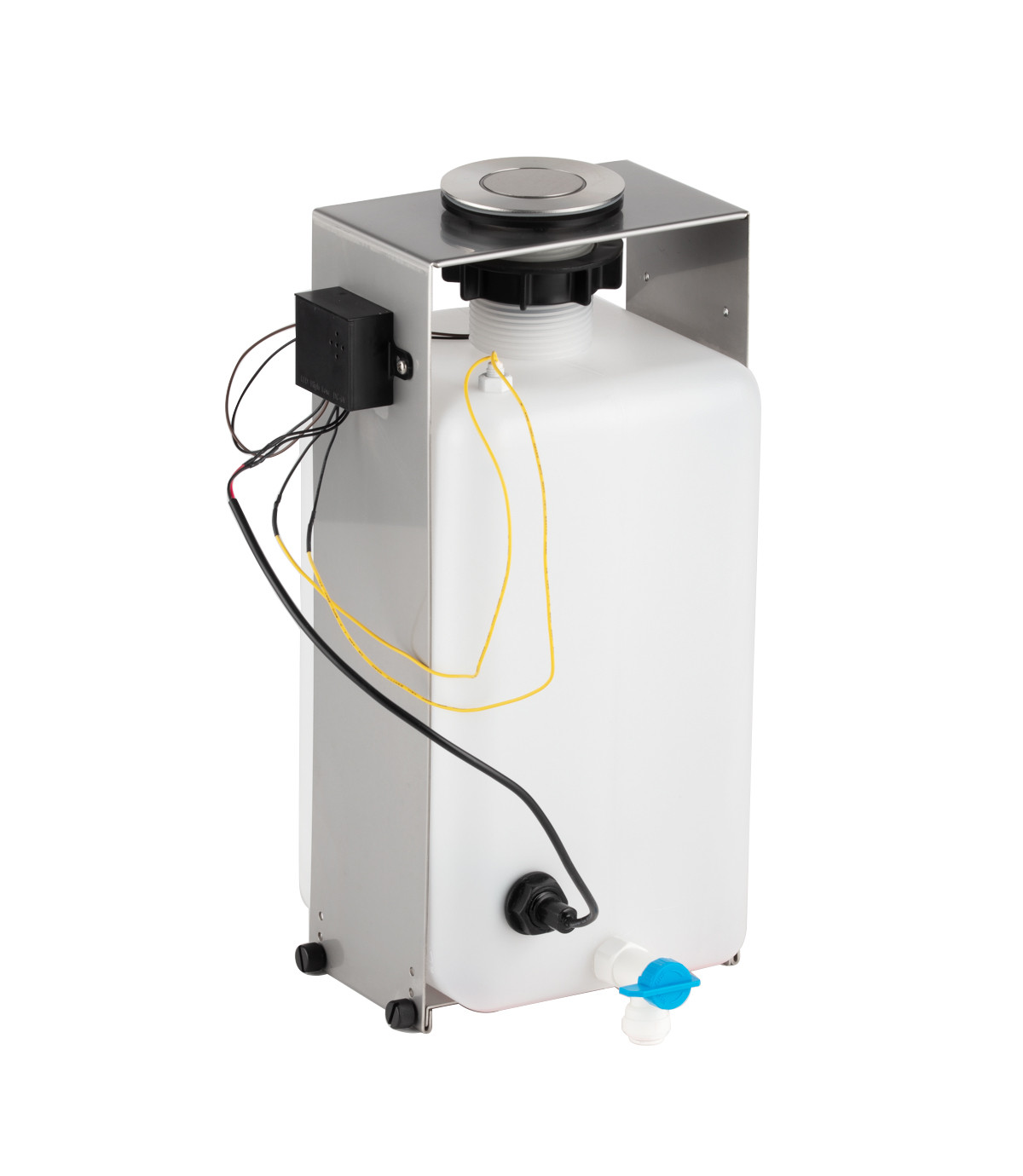

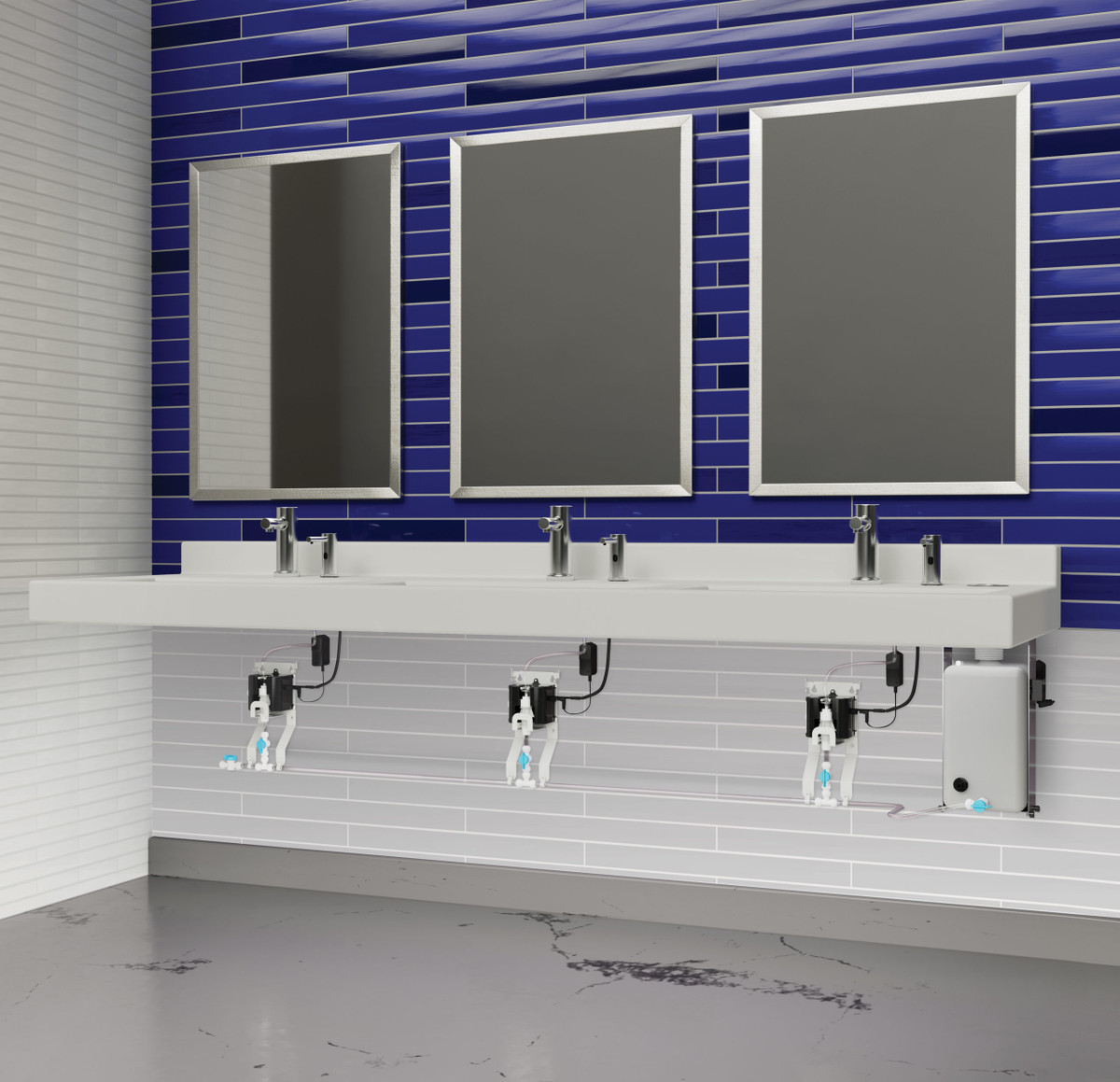

Designed for high traffic facilities, the Automatic Multi-Feed Soap Dispensing System feeds up to six automatic foam or liquid soap dispensers. The top-fill large capacity Multi-Feed Soap Reservoir has a 6-liter tank that eliminates frequent refilling of single dispensers, reducing maintenance time and cost; Uses bulk soap for significant cost savings of 80% or more over proprietary cartridges; Makes maintenance easy with LED indicators on the fill port that lets maintenance know when service is needed.

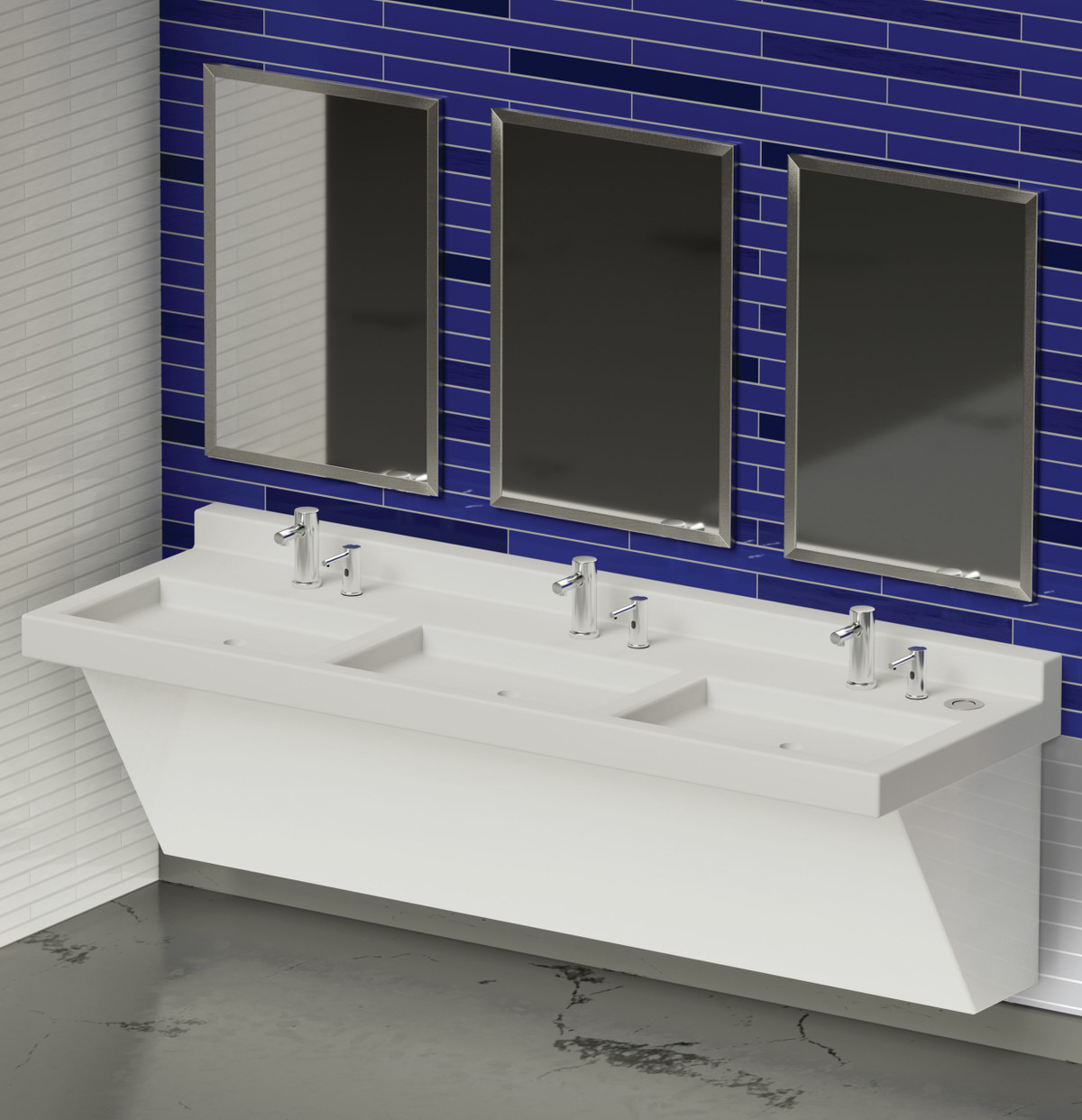

The Automatic Soap Dispenser’s touch free sensor reduces cross-contamination risk to patron and is available for foam or liquid soap; Polished chrome, 304 stainless steel spout, reflects design continuity with other restroom accessories and plumbing fixtures.
Select the reservoir, then select either foam or liquid soap.
B-820 Multi-Feed Soap Reservoir and
B-820-248 Foam Soap Dispenser or
B-820-258 Liquid Soap Dispenser
Powered by 6V AC Adapter that is included with each Multi-Feed Soap Reservoir and Soap Dispenser. Optional Battery Pack available, order Part No. 824-241. For outlets not compatible with U.S. plugs, order Part No. 3974-58.
Designer’s Notes:
- Multi-Feed Soap Reservoir and Soap Dispensers are ordered and furnished separately.
- Soap dispenser fits 1″ diameter counter hole.
- Reservoir fill port requires 2 3/8″ diameter counter hole.
- Maximum mounting thickness is 1 1/2″.
Specifications
| Finish | Satin |
|---|
| Material | Plastic, Stainless Steel |
|---|
| Mounting Type | Counter Mounted |
|---|
| Mounting Options | Deck Mounted |
|---|
| Operation | Automatic |
|---|
| Product Type | Multi-Feed Soap Dispensing System |
|---|
| Finish | Polished Chrome |
|---|
| Material | Stainless Steel |
|---|
| Mounting Type | Counter Mounted |
|---|
| Mounting Options | Deck Mounted |
|---|
| Operation | Automatic |
|---|
| Dispense Type | Foam Soap, Liquid Soap |
|---|
| Capacity | High (Multi-Feed) |
|---|
| Features | Top Fill, Low Soap Indicator, Low Battery Indicator |
|---|
| Accessibility | ADA Compliant |
|---|
