Model # 1224 Series (SKU 10-1224-SERIES)

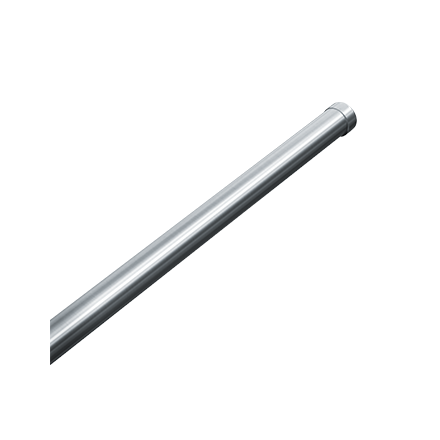

Rod is fabricated of alloy 18-8 stainless steel, type 304, No.20 gauge 1" dia. tubing. Length as specified. Concealed Mounting Flanges (Part 1224-1) are chrome plated brass with a satin finish. Pair of flanges consist of a wall mounting lug and a locking sleeve. One sleeve includes locking screw to prevent rod rotation. Mounting lugs provided with (2) mounting holes to accept #10 round or pan head screws (furnished by others). Select length in inches (i.e. 48, 60, 120) to create Part Spec Order Number (i.e. 1224-60). Rod is installed in straight section between two (2) mounting flanges. Rods longer than 72" (1829mm) require ceiling hanger Model No. 1224-C18. For use with standard shower curtain Model No’s 1200 or 1200-V having 72" (1829mm) length and standard hooks Model No. 1200-SHU unit should be installed with rod centerline 74-1/2" (1892mm) AFF or 67" (1702mm) above tub rim to obtain 6" (152mm) bottom overlap.
Product Specifications
| Category | SHOWER / TUB ACCESSORIES |
|---|
| Buy America Act | Compliant |
|---|
