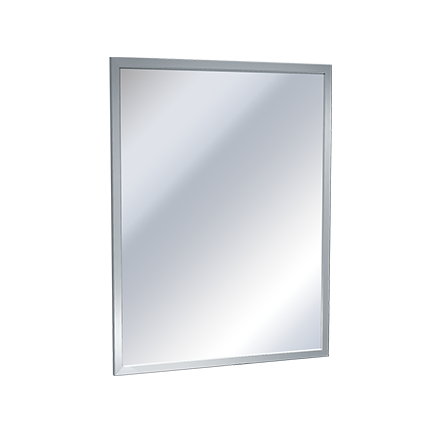

Model # 0600-C1824 (SKU 10-0600-C1824)
3⁄4″ x 5⁄8″ (19 x 16 mm) roll formed 18 gauge type 304 stainless steel angle has corners heliarc welded, ground and polished smooth to a uniform satin finish. Mirror is installed on a concealed hanging bracket that locks onto top and bottom of frame by tamper-proof set screws. Back plate is one piece, attached to frame with theft-resistant locking device. See Price List for all sizes available. Variable standard sizes and reflective surfaces available, choose appropriate suffix: Plate Glass 0600-1620 – 16” wide x 20” high (406 x 508 mm) 0600-1624 – 16” wide x 24” high (406 x 610 mm) 0600-1630 – 16” wide x 30” high (406 x 762 mm) 0600-1824 – 18” wide x 24” high (457 x 610 mm) 0600-1830 – 18” wide x 30” high (457 x 762 mm) 0600-1836 – 18” wide x 36” high (457 x 914 mm) 0600-2060 – 20” wide x 60” high (508 x 1524 mm) 0600-2430 – 24” wide x 30” high (610 x 762 mm) 0600-2436 – 24” wide x 36” high (610 x 914 mm) 0600-2442 – 24” wide x 42” high (610 x 1067 mm) 0600-2448 – 24” wide x 48” high (610 x 1219 mm) 0600-2460 – 24” wide x 60” high (610 x 1524 mm) 0600-2472 – 24” wide x 72” high (610 x 1829 mm) 0600-3036 – 30” wide x 36” high (610 x 914 mm) 0600-3636 – 36” wide x 36” high (914 x 914 mm) 0600-3648 – 36” wide x 48” high (914 x 1219 mm) 0600-4830 – 48” wide x 30” high (1219 x 762 mm) 0600-4836 – 48” wide x 36” high (1219 x 914 mm) 0600-6036 – 60” wide x 36” high (1524 x 914 mm) 0600-7236 – 72” wide x 36” high (1829 x 914 mm) Tempered Glass 0600-B1824 – 18” wide x 24” high (457 x 610 mm) 0600-B1830 – 18” wide x 30” high (457 x 762 mm) 0600-B1836 – 18” wide x 36” high (457 x 914 mm) 0600-B2430 – 24” wide x 30” high (610 x 762 mm) 0600-B2436 – 24” wide x 36” high (610 x 914 mm) 0600-B2448 – 24” wide x 48” high (610 x 1219 mm) 0600-B2460 – 24” wide x 60” high (610 x 1524 mm) 0600-B2472 – 24” wide x 72” high (610 x 1829 mm) Stainless Steel, Type 304 with #8 Finish 0600-C1418 – 14” wide x 18” high (356 x 457 mm) 0600-C1824 – 18” wide x 24” high (457 x 610 mm) 0600-C1830 – 18” wide x 30” high (457 x 762 mm) 0600-C2430 – 24” wide x 30” high (610 x 762 mm) 0600-C2436 – 24” wide x 36” high (610 x 914 mm) 0600-C2460 – 24” wide x 60” high (610 x 1524 mm)
Product Specifications
| Category | MIRRORS |
|---|
| Size | Mirror Standard Size |
|---|
