Configured to order — request a quote
Stainless Steel toilet partitions, alcove layout — priced live from our instant-quote engine. Type 304 brushed stainless — naturally hygienic, corrosion-proof, and the premium aesthetic for flagship facilities. A large accessible (ADA) compartment closes the room, with the additional stalls running perpendicular — the standard accessible-restroom arrangement.
How ordering works: quantity = number of stalls. Each unit is one complete headrail-braced compartment — door, panels, pilasters, and chrome-plated hardware included. Volume pricing applies automatically:
| Stalls | Rate | Subtotal |
|---|---|---|
| 2 stalls | $1,717.70 / stall | $3,435.40 |
| 3 stalls | $1,677.22 / stall | $5,031.66 |
| 4 stalls | $1,657.70 / stall | $6,630.80 |
| 5 stalls | $1,659.48 / stall | $8,297.40 |
| 6 stalls | $1,651.28 / stall | $9,907.68 |
| 8 stalls | $1,643.31 / stall | $13,146.48 |
| 10 stalls | $1,641.03 / stall | $16,410.30 |
| 12 stalls | $1,634.80 / stall | $19,617.60 |
| 16+ stalls | $1,626.00 / stall | $26,016.00+ |
Freight to the lower 48 is included in the rates above — nothing is added at checkout. Because LTL carriers bill a shipment minimum, freight per stall falls sharply as the run gets bigger, which is why the rate drops with quantity. One ADA-compliant compartment is standard on most commercial jobs; our team confirms the ADA layout on every order before release.
The layout is which walls your compartments touch — it decides the panel count, so it has to match your room. Overhead views:
 Corner Wall | The run starts against one wall and the last compartment closes into the corner, so only one end panel is needed. The most common small-restroom arrangement. |
 Between Walls | Standard-size stalls span wall-to-wall between two existing walls in a straight run — doors and dividing panels only, no end panels. Not the same as an alcove layout (below). |
 Free Standing | An island run anchored by floor-mounted pilasters, away from the side walls — both ends of the run get panels. For larger rooms. |

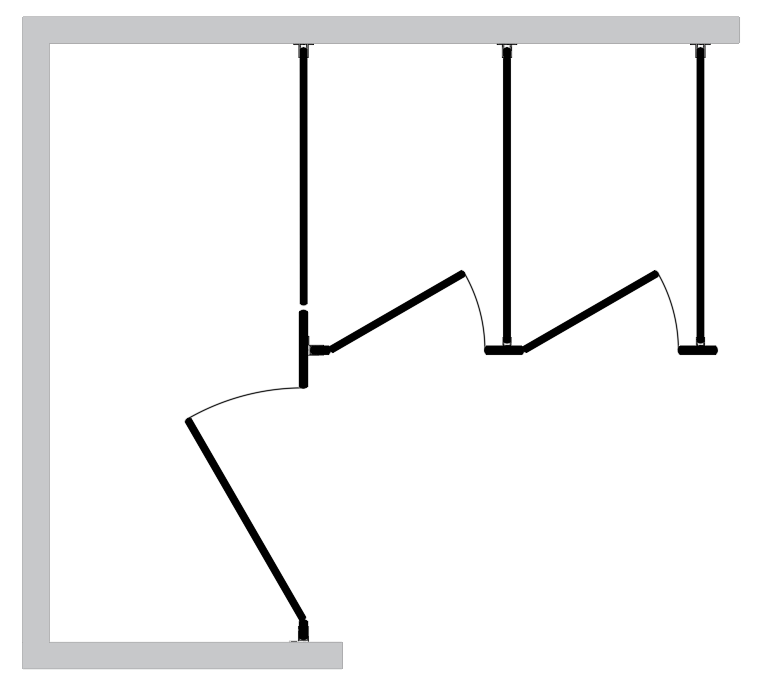

 Alcove — this product | A large accessible (ADA) compartment closes the room, and the additional standard stalls run perpendicular to it — not inline. |
 Alcove Between Walls | The same oversized accessible compartment, with the perpendicular standard run spanning between two walls. |
Need full-privacy height (+30%), urinal screens, or a custom run? Use the instant configurator for an exact quote on any configuration, or call (646) 453-4564 — every online order is reviewed by a partition specialist before it ships.
Brushed Stainless Steel
Embossed Stainless Steel
Swatches shown in the color picker above; the full palette with photos is at our color reference page. Premium finishes are quoted individually so volume pricing stays exact.
