Configured to order — request a quote
Stainless Steel toilet partitions, alcove between walls layout — priced live from our instant-quote engine. Type 304 brushed stainless — naturally hygienic, corrosion-proof, and the premium aesthetic for flagship facilities. An oversized accessible (ADA) compartment with the perpendicular standard run spanning wall-to-wall.
How ordering works: quantity = number of stalls. Each unit is one complete headrail-braced compartment — door, panels, pilasters, and chrome-plated hardware included. Volume pricing applies automatically:
| Stalls | Rate | Subtotal |
|---|---|---|
| 2 stalls | $1,442.70 / stall | $2,885.40 |
| 3 stalls | $1,493.89 / stall | $4,481.67 |
| 4 stalls | $1,520.20 / stall | $6,080.80 |
| 5 stalls | $1,549.48 / stall | $7,747.40 |
| 6 stalls | $1,559.61 / stall | $9,357.66 |
| 8 stalls | $1,574.55 / stall | $12,596.40 |
| 10 stalls | $1,572.27 / stall | $15,722.70 |
| 12 stalls | $1,566.04 / stall | $18,792.48 |
| 16+ stalls | $1,557.24 / stall | $24,915.84+ |
Freight to the lower 48 is included in the rates above — nothing is added at checkout. Because LTL carriers bill a shipment minimum, freight per stall falls sharply as the run gets bigger, which is why the rate drops with quantity. One ADA-compliant compartment is standard on most commercial jobs; our team confirms the ADA layout on every order before release.
The layout is which walls your compartments touch — it decides the panel count, so it has to match your room. Overhead views:
 Corner Wall | The run starts against one wall and the last compartment closes into the corner, so only one end panel is needed. The most common small-restroom arrangement. |
 Between Walls | Standard-size stalls span wall-to-wall between two existing walls in a straight run — doors and dividing panels only, no end panels. Not the same as an alcove layout (below). |
 Free Standing | An island run anchored by floor-mounted pilasters, away from the side walls — both ends of the run get panels. For larger rooms. |
 Alcove | A large accessible (ADA) compartment closes the room, and the additional standard stalls run perpendicular to it — not inline. |

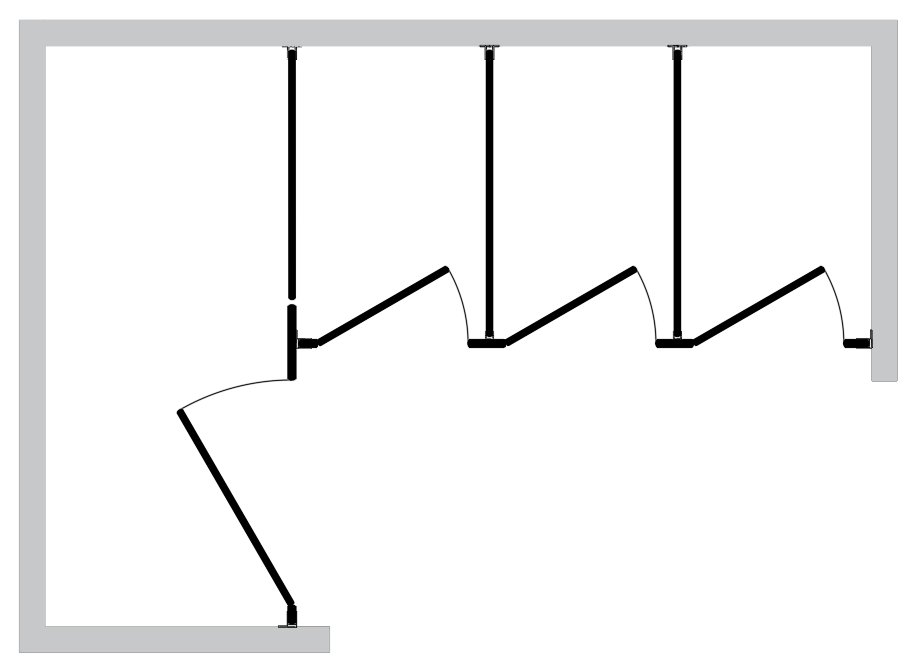

 Alcove Between Walls — this product | The same oversized accessible compartment, with the perpendicular standard run spanning between two walls. |
Need full-privacy height (+30%), urinal screens, or a custom run? Use the instant configurator for an exact quote on any configuration, or call (646) 453-4564 — every online order is reviewed by a partition specialist before it ships.
Brushed Stainless Steel
Embossed Stainless Steel
Swatches shown in the color picker above; the full palette with photos is at our color reference page. Premium finishes are quoted individually so volume pricing stays exact.
