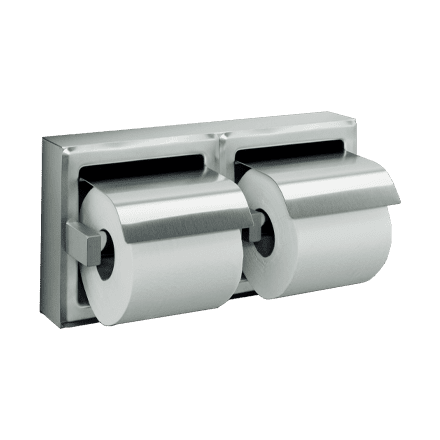

Model # 74022-HBSM / 74022-HSSM (SKU 10-74022-HSM-SERIES)
Product Dimensions: Overall Dimensions: 12-5⁄8" x 6-5⁄16" x 2" 320 x 160 x 51 mm Product Features: INSTALLATION For Standard Dry Wall Mounting: Locate unit and transfer hole positions to wall. Drill four (4) 7/32" diameter (Ø5.6) clearance holes through tile and/or wallboard only. Use four (4) No 10 stainless steel Philips flat or oval head self-tapping or wood screws (by others) of suitable length to penetrate blocking in wall by approximately 1/2" (13). Tighten screws to hold unit tight against finished wall face. Optional Method for Dry Wall Mounting: Locate unit and transfer hole positions to wall. Drill four (4) holes appropriate for expansion anchors into masonry substrate. Tap proper expansion anchors (provided by others to suit wall conditions) into wall to be flush with wall face. Use four (4) stainless steel Philips flat or oval head No 10AB self-tapping screws (provided by others to suit wall conditions) through dimpled holes at back of shell. Tighten screws to hold unit tight against finished wall face. For compliance with ADA Accessibility Guidelines install unit with centerline of roller 19" (483) min AFF to 42" (1067) max AFF and 7" (178) min to 9" (229) max from front of commode to centerline of dispenser. Product Description: Includes Hood. Bright or satin finish. Surface Mounted Double Toilet Tissue Holder holds and dispenses all standard core roll tissue up to 6’’ diameter (Ø152) roll (holds two (2) rolls). Fabricated of stainless steel type 304 alloy 18-8. Roller is chrome plated high impact resistant ABS plastic and spring-loaded.
Product Specifications
| Shipping Weight | 2.9 lbs |
|---|
| Shipping Volume | 0.18 cu. ft. |
|---|
| Category | TOILET TISSUE DISPENSERS |
|---|
| Buy America Act | Compliant |
|---|
